1. Objective

  1. Passive Speaker, 2-way i.e. single woofer & tweeter
  2. Design w/o audio test equipment
  3. Near field listening, monitor speaker
  4. Smallest speaker box possible
  5. Front vent design
  6. Self-assembled crossover
  7. Budget max USD200 c/w Class D amplifier
  8. Recycle & reuse

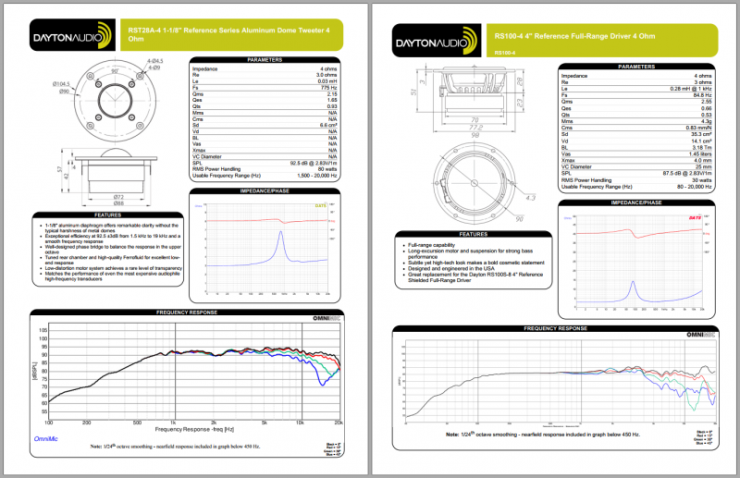

2. ChoosE speaker component

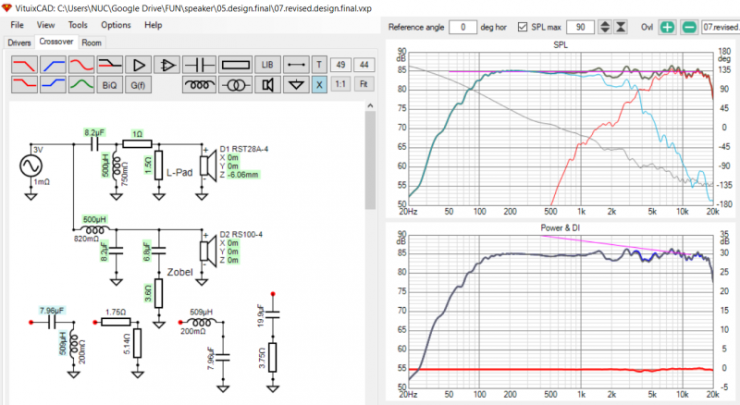

3. Design Crossover Circuit


4. Design Speaker Box


5. Construction - WOOD Carpentry

  • Solid 3/4 inch rubber wood panel from old wardrobe
  • Tools - jigsaw, router, cordless, drill-bit, F-clamps
